Product Details
- Size: 45
- Place of Origin: Liangshan,China
- Brand Name: HYD
- Model Number: semi trailer
- Weight: 9000.000 kg
- :
- :
- :
- :
- :
- :
- :

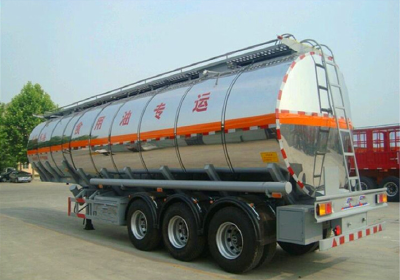

stainless Fuel Tanker Semi Trailer Tanker Trailer
- Size: 45
- Place of Origin: Liangshan,China
- Brand Name: HYD
- Model Number: semi trailer
- Weight: 9000.000 kg
- :
- :
- :
- :
- :
- :
- :
Product Description

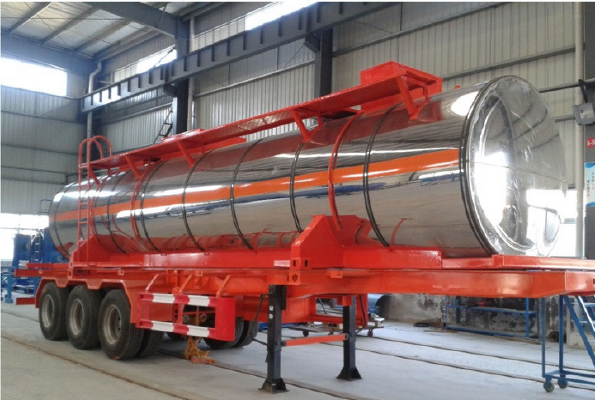

| 3 Axles stainless steel Tanker semi Trailer transport Liquid sulfuric acid | |
| Overall dimensions (Lx W xH) | 9600×2500×3750mm |
| Curb weight | 9,000kgs |
| Tanker capacity | 17,000 liters=6422Gal |
| Rated loading weight | 30,000kgs |
| Medium | liquid molten sulfur acid 1.83 concentration |
| Operating Pressure 25 psi | |
| Design Temperature -20°C to 70°C | |
| Heat 150 PSI working pressure | |
| Wave resistance plates | Total 3 Wave resistance plates weld in the tanker |
| Tank body | S/S 316L 7mm inner is polyurethane epoxy, anti-corrosion |
| Seal head | S/S 316L 8mm |
| Tank Accessories | shell and heads ,Rings, Subframe 2.6mm S/S 304. S/S 304 - 10GA splash plate included directly under manhole |
| Walkway | on the top |
| Heat insulation system | The tank equipped with heating system and insulation layer that can keep continuous heating for sulfur and keep warm loss by insulation layer. USE Fiberglass insulation or compressed mineral wool |
| Main frame | Heavy duty and extra durability designed; high tensile steel 16Mn(Q345B),coupled by automatic welding process.19,000 liters brim stone tank description |
| The height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm,middle plate is 10mm. | |
| Axle | FUWA Brand 3 axle |
| Tire | 12.00R22.5 double star brand *12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Suspension system | Mechanical suspension American type ZY brand |
| Steel Spring | (10/10)10pcs*90*13mm leaf spring |
| Landing Gear | JOST brand two-speed double action landing gear, manual operating ,heavy duty landing gear 28T |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks A system with emergency brake and parking brake; |
| Dual line-air brake, piggyback spring on all axles; | |
| Traction Pin | JOST brand 2" (50mm) bolt-in king pin |
| Electrical | Electric circuit Chinese standard 24V, Receptacle 7 ways (7 wire harness), LED 8 side lights and 2 rear lights 2 width lamp |
| Manholes cover | 2 sets of Standard DN500mm(20 inches)China made quick opening manhole with 2 vent valves |
| Discharge valve | 1 units of DN80mm China made ball valve for each discharge |
| outlet,also with quick coupling by gravitational flow meter | |
| Anti-static system Manufacturer’s standard | |
| Discharge pipe | 4" seamless steel tube |
| Bottom valve | 4" valve *1sets |
| other discharging accessories | Manufacturer’s standard configuration |
| Drawing | Including |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint wax spray |
| Accessories | One standard tool box one spare tire carrier one crank one shaft head wrench four side light two rear light |
| ABS | Kemi Brand ABS |
| Date of delivery | 25 workdays after we received 30% of contract value T/T down payment. |
