- Place of Origin: Shandong Liangshan
- Brand Name: HYD
- Model Number: HYD154323322

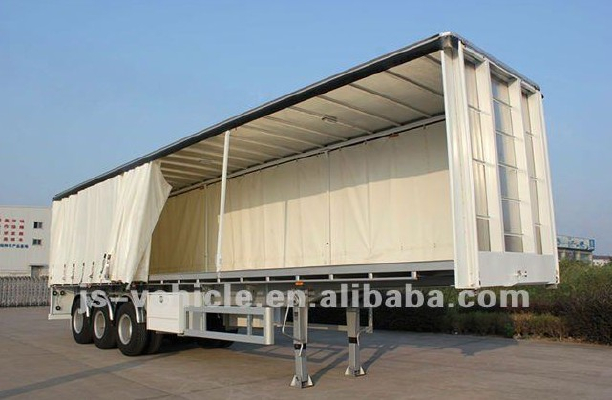

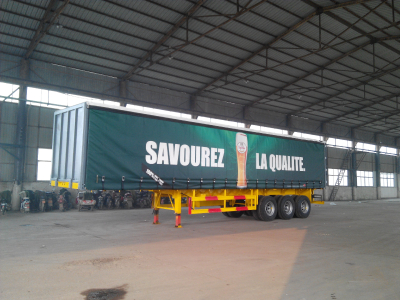

3 axle curtain semi trailer for cargo transport
Weight: | ||
Tare Weight | 6680kg--8500kg | |
Loading Capacity | 30T--60T | |
Axle Weight Load | 13T/16T | |
Specification: | ||
Axle number | Three | |
Axle specs. | FUWA or BPW Brand | |
Suspension | Common mechanical Suspension | |
Wheel | 11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone Brand | |
King Pin | JOST 50# or 90# traction pin | |
Dimensions | 10500/11000×2550×3350,3550,3750mm, | |
Support legs | 28Tons (Tongyada Brand)/Jost D200T | |
Rim | 8.25×22.5/9.00*22.5 Vacunnm tire Zhengxing Brand | |
Wheelbase | 5460/5060/6680/6260 1310 1310mm, | |
Steel Spring | 10/10/10 pieces per axles | |
Twist Locks | 4 pieces | |
Tire: | ||
Number of Tire | can be choose freely | |
Spare Tire Carriers | 2/4 pieces | |
Frame: (specs. and materials) | ||
The material of | The height of the beam is450/500mm,upper plate is 14mm,down plate is 14/16mm,middle plate is 8mm.If choose the SSAB high stress steel ,the uper and down plate is 8mm,middle plate is 5mm.Side board Thickness is 1.2/2.3mm with 28 pieces lock bar. | |
Platform plate | 3mm Diamond/flat Platform | |
Brake: | ||
Brake | Kemi Brand of China | |
Brake Chamber | Four double and two single chamber( TKL brand ) | |
ABS system | without | |
