- Place of Origin: Shandong Liangshan
- Brand Name: HYD
- Model Number: HYD1265469

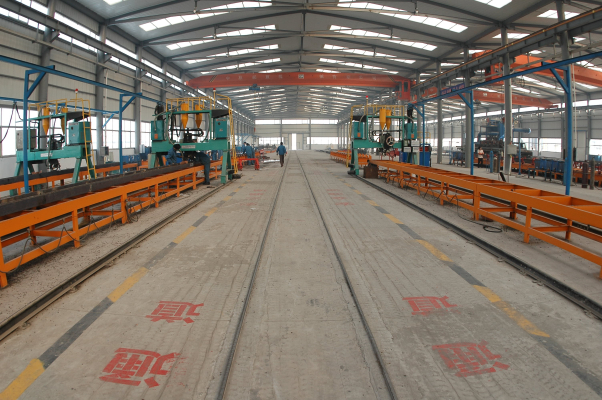

workshop
- Place of Origin: Shandong Liangshan
- Brand Name: HYD
- Model Number: HYD1265469

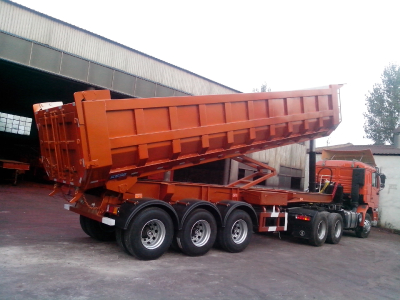

Rear dump semi trailer
Item | unit | parameter | ||
Product Name | HLQ9400ZX dump semi-trailer | |||
Overall dimensions | mm | 13000×2500×3050 | ||
Max loading | kg | 60000 | ||
Mass in working order | 8000 | |||
Body internal dimensions | mm | 12800×2350×1600 | ||
Wheel base | 6700 1310 1310 | |||
Front/rear overhang | -/2150 | |||
Approach/departure angle | ° | -/15 | ||
Number of armor plate spring | -/4/4/4,-/8/8/8,-/10/10/10 | axle | 13T FW | |
Tire specification | 11.00R20 | Pin traction | 90# | |
F/R wheel base | 1840/1840/1840 | Outrigger | 28T Single-action | |
Number of axles | 3 | Braking system | Brake made in China | |
Equipment
| The dump is from the side. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 6mm, bottom 8mm. | |||
Production cycle | 10-15 days | |||
Warranty | 12 month,from the date of supply | |||
FOB PRICE | USD | DAF/CNF/CIF | USD | |
