- Size: 65
- Place of Origin: Liangshan,China
- Brand Name: HYD
- Model Number: semi trailer
- Weight: 6000.000 kg
- :
- :
- :
- :
- :
- :
- :

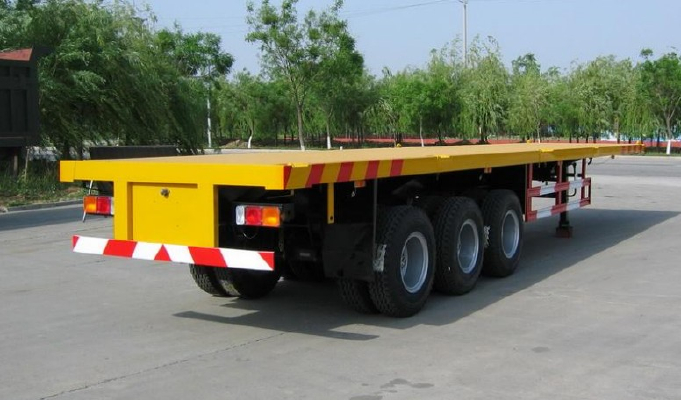

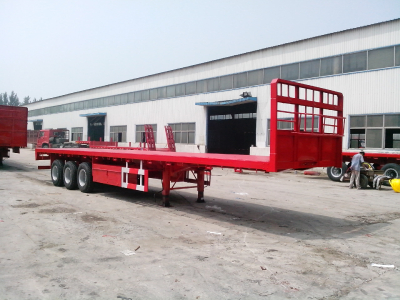

3 AXLE FLATBED SEMI TRAILER
- Size: 65
- Place of Origin: Liangshan,China
- Brand Name: HYD
- Model Number: semi trailer
- Weight: 6000.000 kg
- :
- :
- :
- :
- :
- :
- :
3 AXLE FLATBED SEMI TRAILER | |
DIMENSIONS | |
Tare weight | 6000kg |
Size | 12400mm*2480mm*1480mm |
Payload | 45T |
Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
Side beam | 16# channel steel(Q235) |
Cross member | 10# channel steel(Q235) |
Floor | 3mm checkered plate |
Axle | 3 axle FUWA brand 13T |
Suspension | Mechanical suspension china brand |
Tire | 12R22.5 double star brand 12pcs |
Wheel rim | 9.0-22.5 better brand 12pcs |
Kingpin | JOST brand 2” bolt-in king pin |
JOST brand two-speed, manual operating ,heavy duty landing gear 24T | |
Twist lock | 12pcs |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | Optional |
Light | LED 8 side lights and 2 rear lights 2 width lamp |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box、one spare tire carrier、one crank、one shaft head wrench、four side light、two rear light |
Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
