Product ID
06120381
Model name

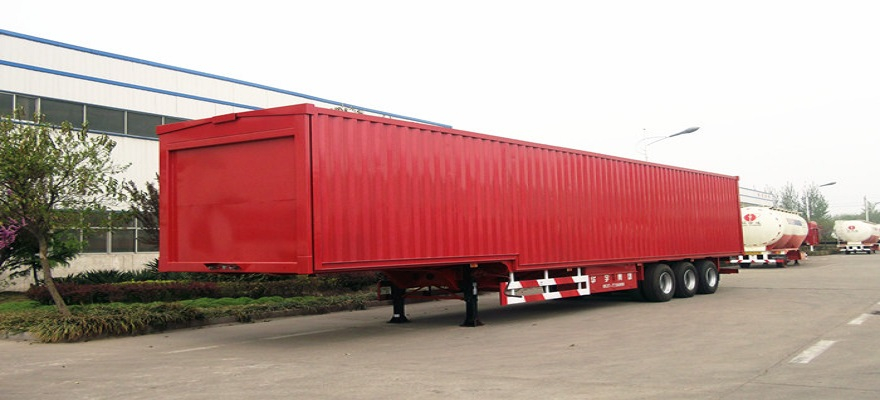

LHY9407XXY van transport semi-trailer
Product trademarks
Arima licensing
Company Name
Shandong Liangshan Hua Yu Group Automobile Co., Ltd.
company address
Liangshan Town Industrial Park in Shandong Province
telephone number
(0537) 7736699
fax number
(0537) 7736333
Zip code
272600
Dimensions (mm)
L * W * H
13,000 * 2550 * 3950,3750,3550
Compartment steeplechase inner dimension (mm)
L * W * H
12840 * 2400 * 2700,2500,2300
Number of axes
3
Wheelbase (mm)
7010 1320 1320
Number of leaf spring
- / 10/10/10
Tire specifications
11.00-20 12PR, 11.00R20 12PR, 12R22.5 12PR
Number of tires
12
Tread front / rear (mm)
- / 1840/1840/1840
The total mass (kg)
39900
Rated contained mass (kg)
31400,31600,31800
Curb weight (kg)
8500,8300,8100
Semi-trailer carrying maximum permissible mass saddle (kg)
15910
Approach / departure angle)
- / 15
Front / rear overhang (mm)
- / 2050
Axle load (kg):
- / 23990 (and loaded three-axis)
Vehicle identification number (vin):
LMC940X3 ×××××××××
other:
Envelope at the top closed, not open, ABS system manufacturer for the West Anzheng Chang Electronics Co., Ltd., model ZQFB-V; protective device made of material Q235A steel, welded connections, cross-sectional dimensions of the rear protective device is 160mm × 80mm, ground clearance is 550mm.
