Product ID
08054868
Model name

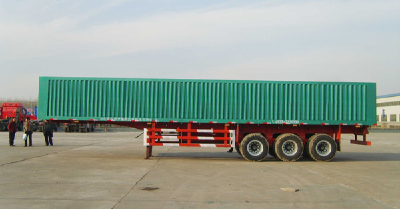

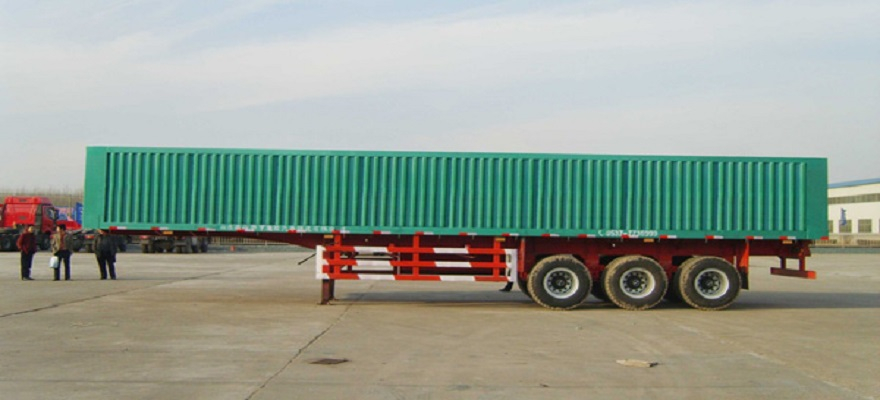

LHY9403XXY van transport semi-trailer
Company Name
Shandong Liangshan Hua Yu Group Automobile Co., Ltd.
Dimensions (mm) L * W * H
14600 * 2550 * 3830,3630,3430,4000
Compartment steeplechase inner dimension (mm) L * W * H
14450 * 2350 * 2200,2000,1800,2370
Number of axes
3
Wheelbase (mm)
8280 1310 1310
Number of leaf spring
- / 10/10/10
Tire specifications
11.00-20 12PR
Number of tires
12
Tread front / rear (mm)
- / 1840/1840/1840
The total mass (kg)
40,000
Rated contained mass (kg)
32000,32200,32400
Curb weight (kg)
8000,7800,7600
Semi-trailer carrying maximum permissible mass saddle (kg)
16000,16250,16500
Approach / departure angle)
- / 12.7
Front / rear overhang (mm)
- / 2400
Axle load (kg):
- / 24000 (and loaded three-axis), - / 23750 (and loaded three-axis), - / 23500 (and loaded three-axis)
Vehicle identification number (vin):
LMC940X3 ×××××××××
other:
Optional height of 2370mm, 2200mm, 2000mm, 1800mm envelope, the corresponding height of the outer profile respectively 4000mm, 3830mm, 3630mm, 3430mm. Height changes caused by changes in the curb weight of less than 3%, the top of the container closure can not be opened, in high using grade a highway trailer carrying maximum permissible mass saddle (kg) also for: 16500, ABS system manufacturer for the West Anzheng Chang Electronics Co., Ltd., model ZQFB-V; protective device made of material Q235A steel, connection way of welding, cross-sectional dimensions of the rear protective device is 160mm × 80mm, ground clearance is 550mm.
