Product ID
08044382
Model name

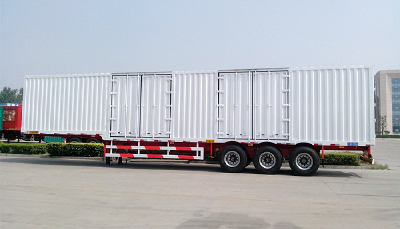

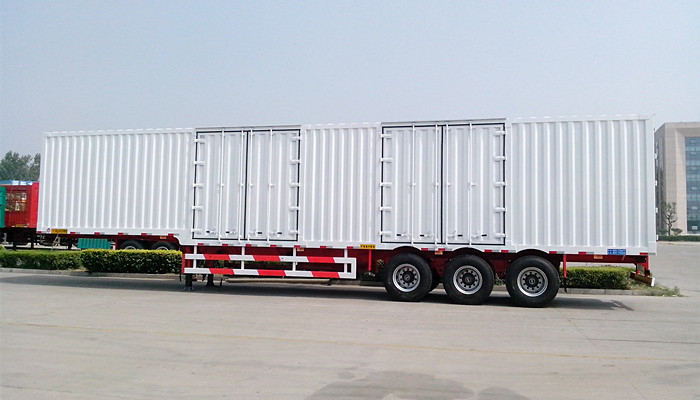

LHY9400XXY van transport semi-trailer
Product trademarks
Arima licensing
Company Name
Shandong Liangshan Hua Yu Group Automobile Co., Ltd.
company address
Liangshan Town Industrial Park in Shandong Province
telephone number
0537-7736699
fax number
(0537) 7736333
Zip code
272600
Dimensions (mm) L * W * H
11000,10500 3830,3630,3430 * 2550 *
Compartment steeplechase inner dimension (mm) L * W * H
10850,10350 2200,2000,1800 * 2350 *
Number of axes
3
Wheelbase (mm)
5080 1310 1310 1310 1310,4780
Number of leaf spring
- / 10/10/10, -4 / 4/4
Tire specifications
11.00-20 12PR
Number of tires
12
Tread front / rear (mm)
- / 1840/1840/1840
The total mass (kg)
39500
Rated contained mass (kg)
31000,31200
Curb weight (kg)
8500,8300
Semi-trailer carrying maximum permissible mass saddle (kg)
15740,15890
Approach / departure angle)
- / 14.6 - / 16
Front / rear overhang (mm)
- / 2100, - / 1900
Axle load (kg):
- / 23760 (and loaded three-axis), - / 23610 (and loaded three-axis)
Vehicle identification number (vin):
LMC940X3 ×××××××××
other:
Compartment plate appearance optional vertical corrugated container type, optional height of 2200mm or 2000mm or 1800mm envelope, the optional height changes caused by curb weight of less than 3%, the top of the container closed, not open, ABS system manufacturers in Guangzhou Bureau of automotive brake technology development Co., Ltd., model CM2XL-4S2J7P; guard material made of Q235 steel, welded connections, the rear guard section size is 160mm × 80mm, ground clearance is 550mm.
