Product ID
A2788
Model name

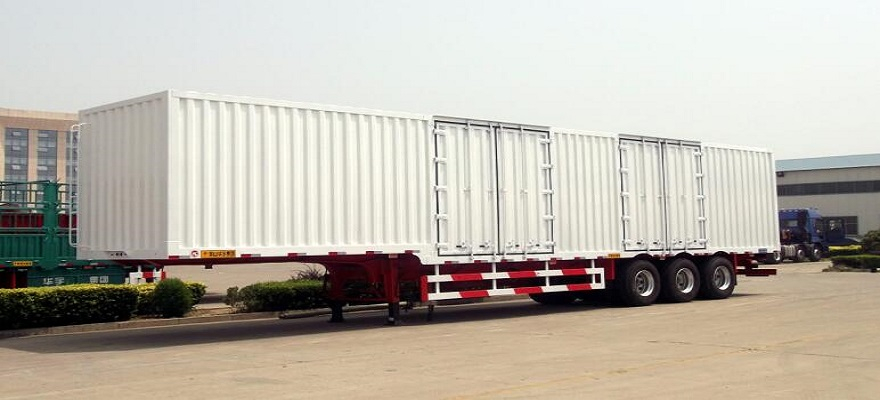

LHY9392XXY van transport semi-trailer
Product trademarks
Arima licensing
Company Name
Shandong Liangshan Hua Yu Group Automobile Co., Ltd.
company address
Liangshan Town Industrial Park in Shandong Province
Dimensions (mm) L * W * H
13,000 * 2550 * 4000,3830,3630,3430
Compartment steeplechase inner dimension (mm) L * W * H
12850 * 2350 * 2400,2200,2000,1800
Number of axes
3
Wheelbase (mm)
6880 1310 1310
Number of leaf spring
- / 10/10/10
Tire specifications
11.00-20 12PR
Number of tires
12
Tread front / rear (mm)
- / 1840/1840/1840
The total mass (kg)
39400
Rated contained mass (kg)
30900,31000,31100,31200
Curb weight (kg)
8500,8400,8300,8200
Semi-trailer carrying maximum permissible mass saddle (kg)
15420,15640,15790,15940
Approach / departure angle)
- / 14
Front / rear overhang (mm)
- / 2200
Axle load (kg):
- / 23980 (and loaded three-axis), - / 23760 (and loaded three-axis), - / 23610 (and loaded three-axis), - / 23460 (and loaded three-axis)
Vehicle identification number (vin):
LMC939X3 ×××××××××
other:
Semi-trailer carrying maximum permissible mass saddle (kg) also for: 15790,15940 optional height of 2400mm or 2200mm or 2000mm or 1800mm in the envelope; Boxes at the top closed, not open attachments at each side of the door,. two pairs of door, car plates optional cross-corrugated, corrugated vertical, ABS system manufacturer for the West Anzheng Chang Electronics Co., Ltd., model ZQFB-V; guard material made of Q235 steel, welded connections, the rear guard the cross-sectional dimensions of 160mm × 80mm, ground clearance is 550mm.
