Product ID
H7081803
Model name

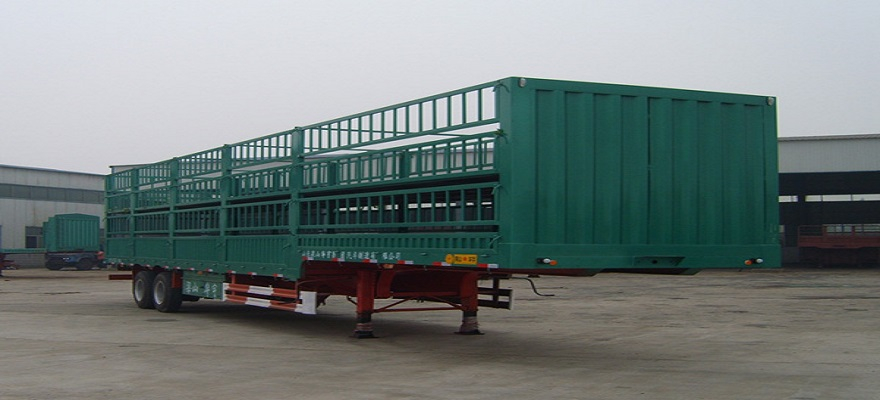

LHY9150TCL vehicle transport trailer
Product trademarks
Arima licensing
Company Name
Shandong Liangshan Hua Yu Group Automobile Co., Ltd.
company address
Liangshan Town Industrial Park in Shandong Province
telephone number
0537-7736699
fax number
(0537) 7736333
Zip code
272600
Dimensions (mm)
L * W * H
14000 * 2500 * 3760
Compartment steeplechase inner dimension (mm)
L * W * H
13800 * 2320 * 2500
Number of axes
2
Wheelbase (mm)
8375 1300
Number of leaf spring
- / 10/10, - / 8/8
Tire specifications
9.00R20 12PR, 10.00R20 12PR
Number of tires
4
Tread front / rear (mm)
- / 2205/2205
The total mass (kg)
14620
Rated contained mass (kg)
7000
Curb weight (kg)
7620
Semi-trailer carrying maximum permissible mass saddle (kg)
6300
Approach / departure angle)
- / 11.6
Front / rear overhang (mm)
- / 2625
Axle load (kg):
- / 8320 (and biaxial loading)
Vehicle identification number (vin):
LMC915L2 ×××××××××
other:
Optional tractor: ZZ4187N3517C, ZZ4185V3515C1, CA4180P66K2A, CA4182P21K2E, EQ4181WB2, BJ4183SLFJA-S, BJ4183SLFJA-S4, ABS system manufacturer for the West Anzheng Chang Electronics Co., Ltd., model ZQFB-V; protective device made of material Q235A steel, welded connections, the rear guard section size of 160mm × 80mm, ground clearance is 550mm.
