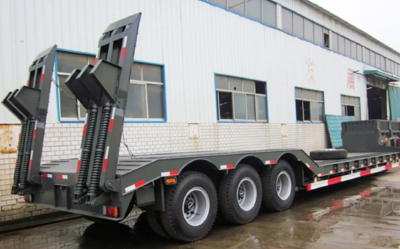

60T Three Axle Low Flatbed Semi-trailer
- Size: 65
- Place of Origin: shandong
- Brand Name: HYD
- Model Number: HYD65986532
- Weight: 11000.000 kg
- :
- :
3 AXLE LOWBED SEMI TRAILER | |
DIMENSIONS | |
Tare weight | 10000kg |
Size | 13000mm*3000mm*1500mm |
Payload | 60T |
Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm |
Side beam | 25# channel steel(Q235) |
Cross member | 16# channel steel(Q235) |
Floor | 5mm checkered plate |
Side wall | No |
Front board | No |
Axle | 3 axle FUWA brand 13T |
Suspension | Mechanical suspension American type local brand |
Leaf spring | Leaf spring 10pcs*90*13mm |
Tire | 12R22.5 double star brand 12pcs |
Wheel rim | 9.0-22.5 better brand 12pcs |
Kingpin | JOST brand 2” bolt-in king pin |
Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
Ladder | |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | Optional |
Lights | LED 8 side lights and 2 rear lights 2 width lamp |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box、one spare tire carrier、one crank、one shaft headwrench、four side light、two rear light |
Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
