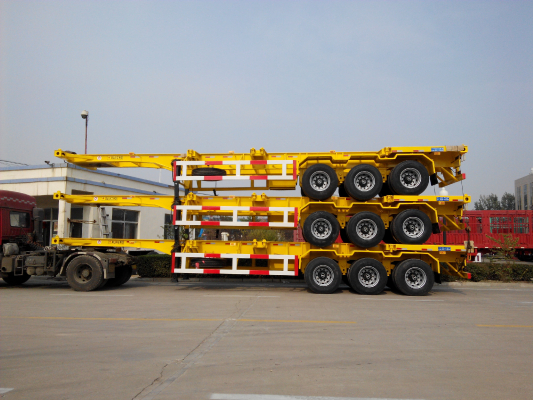

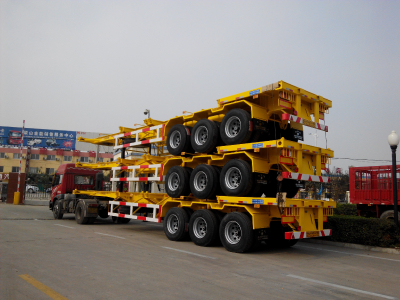

40ft 20ft skeleton semi trailer

40ft 20ft skeleton semi trailer

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: Any port of China
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2001-06-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  45
  • Place of Origin:  shandong
  • Brand Name:  HYD
  • Model Number:  HYD65986548
  • Weight: 6000.000 kg

Company Information

ShanDong Liang Shan HuaYu Group Automobile Manufacture Co .,Ltd. is an automobile manufacture enterprise approved by the former National Economics and Trade Committee, with “HuaYuDa Brand” automobile products being catalogued into the national automobile product summary announcement. The company engaged in designing, researching manufacturing and selling. The company covers above 800 acres, with total assets of RMB 560,000,000.00 Yuan and factory building areas of 236,000 square meters. Now there are more than 2000 staff, therein 180 senior technical engineers. The company mainly specializing in manufacturing special vehicles such as refitting vehicles, semi trailers, tippers, and oil tank trucks, bulk cement tank, concrete mixer trucks and special operations vehicle, with annual yield of above 10000 sets. The company equips the first-class CNC cutting, advanced equipment of welding and stamping, and excellent quality guarantee system, modern testing means and high qualified specialist technicians. Our company is a special purpose motor vehicle manufacturing enterprise which has large scale of production, perfect Quality Management System in domestic. Products sold throughout the country, some products are exported to Russia, Philippines , Singapore ,UAE, and Southeast Asia and so on more than 20 countries

FAQ

1.Payment term: 30% of contract value T/T down payment,pay off before delivery

2.Delivery date:10 workdays after we received 30% of contract value T/T down payment.

3.We can design and produce according to your requirements.


  • Size:  45
  • Place of Origin:  shandong
  • Brand Name:  HYD
  • Model Number:  HYD65986548
  • Weight: 6000.000 kg

Specifications

1.size:12350x2480x1580mm
2.wheelbase :7380 1320mm
3.track:1840/1840/1840
4.we can produce accordding to you requirement

Type

Container trailer

Tare weight

5200kg

Loading capacity

50t

Axle weight

13T/16T

Axle number

3

Axle brand

Fuwa/hj.bpw

Suspension

Fuwa brand or common mechanical suspension

King pin

50#/90# JOST brand

Wheel

10.00-20/11.00-20triangle brand/

Outside size

12350x2480x1580mm wheelbase : 7380 1320mm

Rim

8.0-20or 8.5-20 zhengxing brand

Steel spring

10/10/10 or 8/8/8 pieces per axles

Twist lock

8pieces or more .according to the buyer’s requirement

Frame


Material of main beam

The height of the beam is 500mm.upper plate is 14mm.down plate is 16mm middle plate is 8mm.side beam is 16mm.channel steel

You can choose high-duty steel

Platform plate

3mm flat or diamond plate (also can choose other thickness,such as 2mm .2.3mm.4mm

Beake


Brake chamber

Two double and two single chambers

ABS system

Can be choose

Tire carrier

Can be choose hanging chain or nets type

Electrical system


Voltage

24v

Receptacle

7 ways(7wire harness)

Light color


Side marker lamp

Orange (4pcs each side)(LED brand)

Rear lamp

Red(LED brand)

Turn signal lamp

Orange

Painting

According to the buyer’s requirement

Marking

According to the buyer’s requirement

Side guard

According to the buyer’s requirement

Tool box

1 piece
