- Size: 45
- Place of Origin: Liangshan,China
- Brand Name: HYD
- Model Number: semi trailer
- Weight: 9000.000 kg
3 axle aluminum alloy fuel tank semi trailer 5083 oil tank semi trailer
- Size: 45
- Place of Origin: Liangshan,China
- Brand Name: HYD
- Model Number: semi trailer
- Weight: 9000.000 kg
Product Description

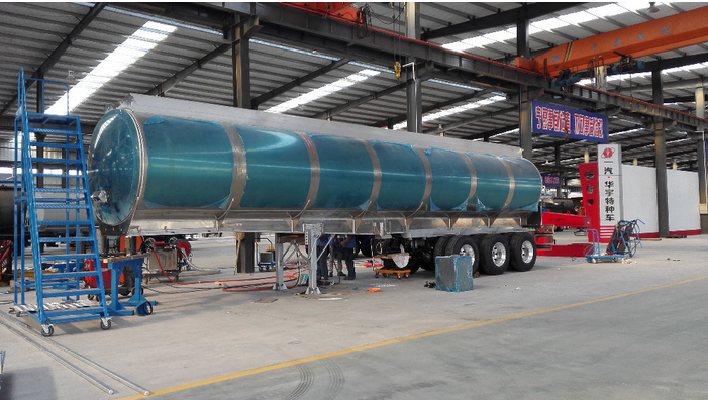

3 axle aluminum alloy fuel tank semi trailer 5083 oil tank semi trailer
DIMENSIONS | ||||||
Tare weight | 9000kg | Volume | 45m3 | |||
Overall length | 11500mm | Overall width | 2500mm | Overall height | 3800mm | |
SPECIFICATION | ||||||
Tank body | 5083/5mm steel | |||||
End plate | 5083/6mm steel sheet | |||||
Axle | Number 3 Brand FUWA Capacity 13T | |||||
Suspension | Mechanical suspension | |||||
Leaf spring | Leaf spring 10pcs | |||||
Manhole cover | 500mm manhole cover .2 sets with 2 breather valve. | |||||
Tire | 12R22.5 11R22.5 12.00R20 11.00R20 825R20 | |||||
Discharge pipe | 4''seamless steel tube | |||||
Kingpin | 2'' bolt-in king pin | |||||
Landing gear | two-speed, manual operating ,heavy duty landing gear 28t | |||||
Bottom valve | 1 set of bottom valve | |||||
Thermal insulation layer | optional | |||||
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | |||||
Painting | Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime,2coats of final paint | |||||
Accessories | One standard tool box | |||||
Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes | |||||
