- Size: 120cbm
- Place of Origin: Shandong
- Brand Name: HYD
- Model Number: LHY98741
- Weight: 11000.000 kg

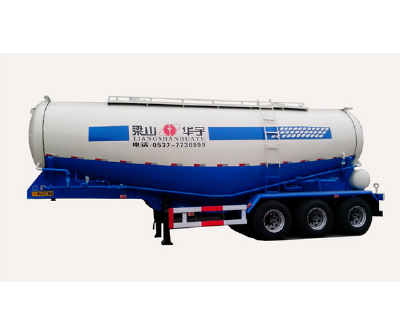

60M3 BULK CEMENT SEMI TRAILER | |
DIMENSIONS | |
Tare weight | 1 15 00kg |
Size | 1 30 00mm*2500mm* 40 00mm |
Volume | 60M3 |
Tank body | Q235A/5mm steel sheet |
End plate | Q235A/6mm .ball shape |
Axle | 3 axle FUWA brand 13T |
Suspension | Mechanical suspension Zheng Yang brand |
Leaf spring | Leaf spring 10pcs*90*13mm |
Manhole cover | 500mm manhole cover .2 sets |
Tire | 12R22.5 double star brand 12pcs |
Wheel rim | 9.0-22.5 better brand 12pcs |
Discharge valve | 4” disc valve |
Discharge pipe | 4” seamless steel tube |
Outlet pipe | 4” rubber hose.6m |
Kingpin | JOST brand 2” bolt-in king pin |
Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
Engine | Diesel engine: TIANHE OR LIYUAN brand model: 4102. |
Air compressor | 37 KW, 0.2Mpa. 1000r/Min bohai brand 12m³ |
Compartment | Single |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | Optional |
Light | LED 8 side lights and 2 rear lights 2 width lamp |
Air-charging system | 2” main hole.2”check valve .1.5”safe valve.0.4Mpa.gauge |
Quadratic blow | 1” diameter check valve |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box , one spare tire carrier , one crank , one shaft head wrench , four side light , two rear light |
Date of delivery | 25 workdays after we received 30% of contract value T/T down payment. |
- Size: 120cbm
- Place of Origin: Shandong
- Brand Name: HYD
- Model Number: LHY98741
- Weight: 11000.000 kg
