- Place of Origin: Shandong Liangshan
- Brand Name: HYD
- Model Number: HYD15642

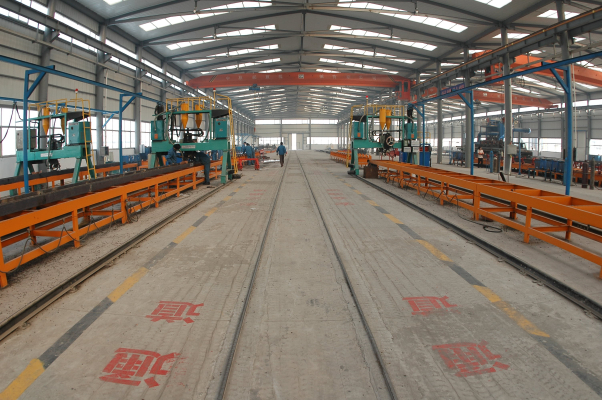

Our workshop
- Place of Origin: Shandong Liangshan
- Brand Name: HYD
- Model Number: HYD15642
3 Alexs Side Wall Semi Dump Trailers With Best Quality
Main Dimensions | |
Dimension | 9200*2400*3200mm ( outside) 9000*2200*1500mm (work space ) |
Tare weight | About 10000KGS |
Total Volume(m3) | 30 m³ or less than 50tons |
Side wall thickness(mm) | 2.3mm Q235 steel (three or five door opening door ) |
Bottom plate thickness(mm) | 3mm diamond plate /Q235 steel |
Lifting system | Full set of Hydraulic Lifting system (Four diameter125 lifting cylinder, and one diameter140 lifting cylinder.) |
Chassis | |
Main Beams | Height:500mm, upper plate is 16mm,middle is 8mm(double three plate),down plate is 18mm,material is Q345B steel |
Axle | 3 axles, FUWA/HUAJING brand 13tons or 16tons per axles |
Landing Gear | JOST (D200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/ America type / |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
